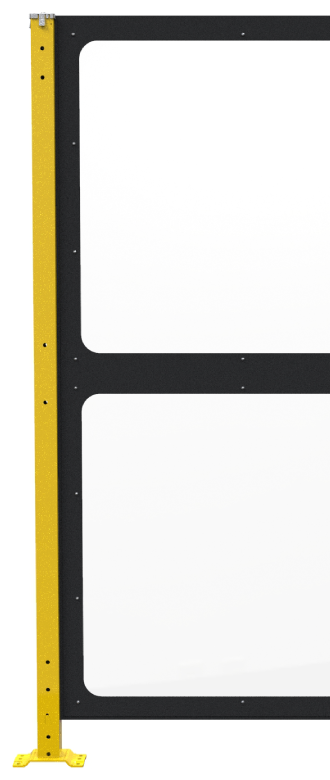

PolyPlus machinery safety guards are composed by 1,5mm laser-worked metal sheet for the lower part and 4mm polycarbonate for the upper part.

These guards are employed when the danger area is close and prevention from dust, sparks or liquid leaks is needed yet visibility within danger area is guaranteed.

Distance from danger area can be as little as 0mm.

The panel is provided with a standard hole to house toughening retained fastenings and other accessories.

REFERENCE LEGISLATION AND STANDARDS

Accessafe PolyPlus Serie complies with the following legislation and standards:

• UNI EN ISO 13857 – Distance from hazard zone
• UNI EN ISO 14120 – Statement of conformity TÜV Nord : DM – 124554-17 in combination with META posts – Self-certification in combination with VITERIA posts
• UNI EN ISO 3834-3 Welding 3834-3 ICIM : 3834-100009-00

FIELD OF APPLICATION

For machinery which requires material containment with high
impact energy.
