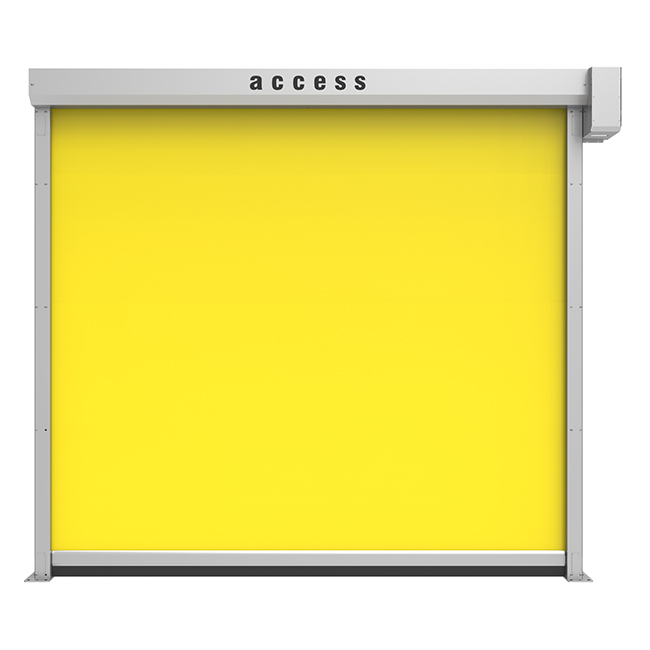

HSRS 120 Door

Access porte veloci - Porta HSRS 120HIGH SPEED ROLL-UP DOORS FOR MACHINERY PROTECTION CERTIFIED AS MACHINERY DIRECTIVE 2006/42/CE

The high speed roll-up door HSRS 120 has been designed for a high intensity industrial use. This door allows for frequent opening/closing, short cycles, it also helps improve efficiency in production and manage material handling and logisitics operations.

It’s modular structure makes it suitable for a variety of applications from machine and line protection in industrial settings, to material handling in logistics and warehouse settings without compromising work cycles.

DOOR FEATURES:

  • Fast operation with high opening/closing cycles
  • Sturdy structure with high level of reliability
  • Door conformant with EN ISO 12100:2010, EN ISO 14120:2015, EN ISO 14119:2013,
    EN 60204-1:2018 standards, Machinery Directive 2006/42/CE
  • Limit switch conformant with EN ISO 13849-1 e IEC 62061:2021  standards

DIRECTIVES AND STANDARDS

Access HSRS 120 Sectional Door is confirmed to the Machine Directive 2006/42/EC and fulfils the following Reference Standards:

  • UNI EN ISO 12100:2010
  • UNI EN 60204-1 :2018
  • UNI EN ISO 14120:2015
  • UNI EN ISO 13849-1 :2015

TYPOLOGY

MIN/MAX DIMENSIONS

SPEED

CONTROL SYSTEM

Depending on application, four different control systems are avaialable. Such systems allow for different speeds, electrical supply and different safety systems.

COMPATIBILITY

The door is compatible with all Access safety guard systems.

SAFETY

• Integrated safety light curtain
• Wireless safety edge
• Thru-beam photoeye
• Anti-drop safeguard
• Closed door safety limit switch
• Scanner laser

MATERIAL

• PVC
• Clear PVC
• Monofilament PVC curtain

WINDOWS

Clear PVC

CONTROLLER

Gearbox with anti-collapse system

NUMBER OF CYCLES PER MINUTE

up to 60 cycles per hour

COLORS
